Tech Tip: Brake Hoses

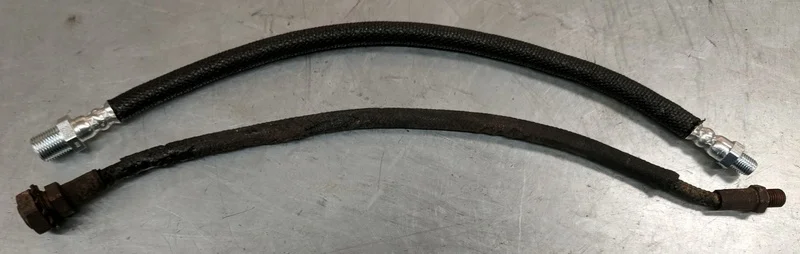

Old (bottom) vs New (top) brake hose

Old (bottom) vs New (top) brake hose

During the restoration of our car, we've had to replace more a few components that are no longer available. One of the main goals that I've had when sourcing replacement parts is to maintain the look of the original component while replacing it with one that is functionally superior. Case in point, the flexible front brake hoses. We are fortunate to have the original hoses and I wanted to use original style fittings, while upgrading to stainless steel flex hoses. The problem is that the modern stainless hoses look too modern. Also, where could I get fittings that had the same basic ends as the original?

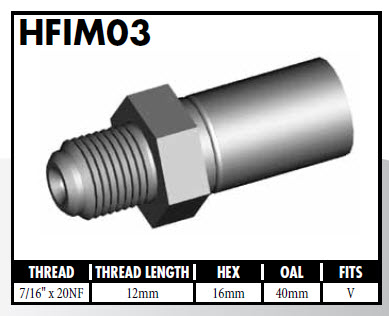

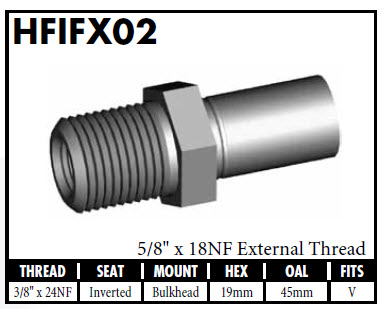

First off, we should all be grateful for the Internet. I'm a firm believer that the Internet is solely responsible for the increase in quality of automotive restorations. After a few minutes of searching, I stumbled across the BrakeQuip Dealer Catalog. Armed with my original hoses, I measured the fittings and found the following BrakeQuip equivalent fittings:


Unfortunately they aren't brass, but these steel fittings are much stonger.

Next step was to find a suitable stainless steel braided brake hoses. I didn't want the typical stainless steel color as it just screamed modern...I was looking for something black, ideally with a matte finish. I found that black lines were available, but the outer coating was shiny. Then I had an idea...fabric wire loom covers look a lot like the original brake hose material...what if I bought some of that and slipped it over the stainless steel brake hoses while they were being fabricated. I found a 7' length of PICO 3/8" (ID) fabric loom (with asphalt coating) on Amazon that looked just like our old brake hoses.

Armed with my fabric loom hose, I went to our local ParkerStore and explained what I wanted. After convincing them I wasn't crazy, they agreed to make up the hoses to meet my requirements. They used their "smoke" colored stainless hoses, the fittings noted above, my PICO fabric loom, and put them together with a total length of 17.5". As you can see, they came out pretty good with a total cost of around $40 per line, less if you have a business account with Parker.

Detail: Old vs New

Detail: Old vs New

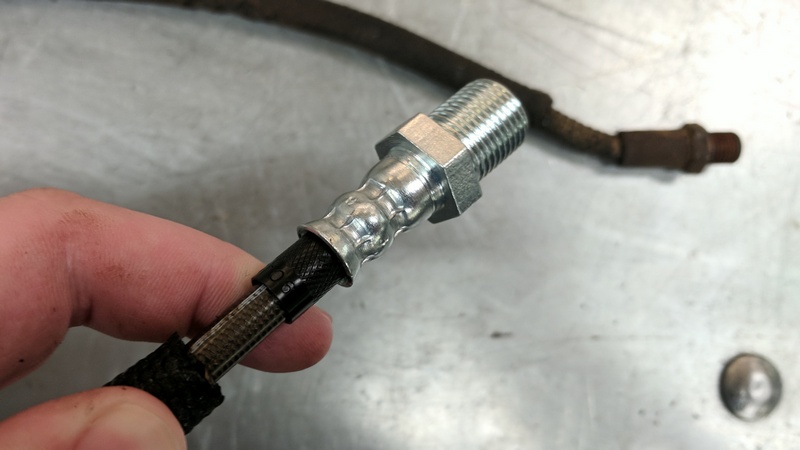

The outer wire loom housing pulled back to reveal the braided stainless hose within

The outer wire loom housing pulled back to reveal the braided stainless hose within

J&G Brake Drum Relining

If your Alfin drums are warped, have damaged fins, or thin/separating linings, then you should contact J&G Brake Drum Relining in McHenry, IL. They specialize in aluminum drum relining and they do all welding & machining in house. They also offer 3 different compounds for brake pads depending on your application. Turnaround time in the winter is 4 to 6 weeks, while summer repairs take a bit longer. Rates are typically $550 per drum, but mention that you are a member of the Allard club for their discounted rate of $430/ea. For more information, visit their web site at www.jgrelining.com or call Don Booker at 815-276-2578.

Shooting Brake



According to Wikipedia, the first "Shooting Brakes" were developed "in the early 19th century, a brake was a large carriage-frame with no body, used for breaking in young horses, to restrict (or "brake") their movement, and train them as work horses. By the late 19th century the term extended to an open-bodied wagonette designed to carry a number of people. A "shooting brake" carried a driver and gamekeeper facing forward and up to six sportsmen on longitudinal benches with their dogs, guns and game carried alongside in slat-sided racks.

The term was subsequently applied to custom built luxury estate cars altered for use by hunters and other sportsmen such as golfers, riders, and polo players requiring easy access to larger storage areas than offered by the typical automobile boot."

This Allard Shooting Brake was likely supplied as a chassis only to an independant body builder. If you know anything about this car, please contact us!
